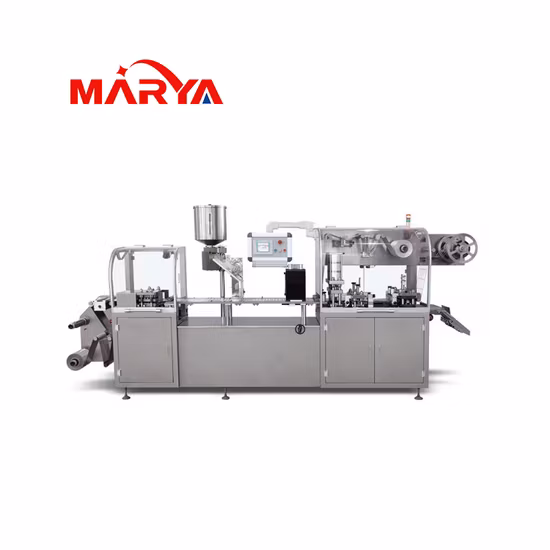

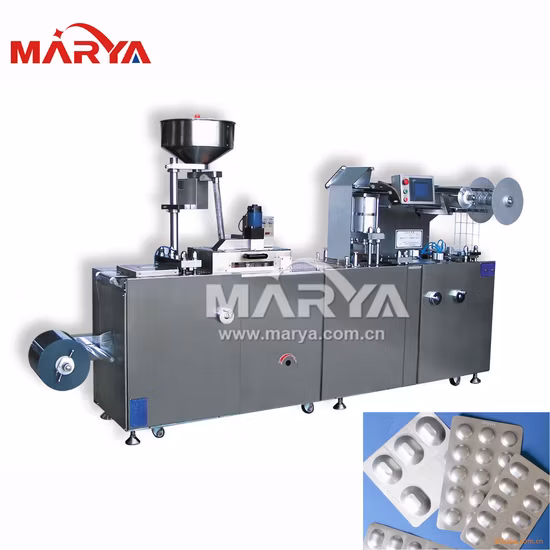

Marya Automatic Cutting Die Blister Packing Machine with Mechanical Punch

Overview Marya Automatic Cutting Die Blister Packing Machine with Mechanical Punch Product Description Product Descripti

Send your inquiry

DESCRIPTION

Overview

Basic Info.

Driven Type	Electric
Automatic Grade	Automatic
Structure	Multifunctional Adjustable Size
Packaging Material	Plastic
Packaging Type	Blister Packaging
Usage	Inner
Type	General
Suitable	Pharmaceutical Packing for Capsule, Tablet, Pill
Cecification	CE GMP
Output Capacity	4000-6000 Blisters/Hour
Weight	700kg
Max. Blister Size	15011020mm
Max. Cutting Frequency	50 Cuttings/Min
Cooling	Water Chiller & Tap Water
Material	Ptp, Alu-Alu & PVC
Name	Automatic Blister Packing Machine
Transport Package	Wooden Case
Specification	28505301450mm
Trademark	Marya
Origin	China
HS Code	8422400000
Production Capacity	100 Sets Per Year

Product Description

Marya Automatic Cutting Die Blister Packing Machine with Mechanical Punch

Product Description

Product Description

DPH-260 high-speed blister packing machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronical area. It is suitable for packing capsules, tablets, milk pieces, candy, electronical element and similar material, with sealing packing in al-pvc, paper-pvc.

Features for Blister Packing Machine1. Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel, and the bliser packing machine has staff gauge, easy to adjust and exact orientation.2. Manipulator towing adopted culms double pendulum device, increased traction adjustable scope of the itinerary (it can get to 180mm), which can fit for medicine-card packaging of different sizes. The blister packing machine can registration heating, positive forming, up and down moiré, air cylinder heating sealing, automatic feeding, automatic lot number printing, automatic cutting die, easy to operate and credible running.3. Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could collocate exclusive Automatic Feeder. The blister packing machine could fit for the packaging of ampoule, needle, Xilin Bottle, big honey pill, medicine machine and some special shape etc.4. Main transmission part adopts parallel axis and bevel wheel speed reducer, forming dies and hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change dies and material saving.5. Detachable design make the blister packing machine can be easily carried and installed according to the requirement of user..

Technical Parameter

Model	DPP-150E	DPP-260E	DPP-350E
Cutting Frequency	10-45 t/min	10-45 t/min	10-45 t/min
Output Capacity	4000-6000 pcs/h	6000-9000 pcs/h	8000-16000 pcs/h
Travel (mm)	30-110	30-130	30-150
Max. Blister Size	140×100×20 mm	250×120×30 mm	350×140×40 mm
Air Consumption	≥0.36 m3/min	≥0.38 m3/min	≥0.42 m3/min
Voltage	380V 50Hz 6.5KW	380V 50Hz 8.5KW	380V 50Hz 13KW
Plastic Film (mm)	140×(0.15-0.5)	250×(0.15-0.5)	350×(0.15-0.5)
Aluminum Foil (mm)	140×(0.02-0.035)	250×(0.02-0.035)	350×(0.02-0.035)
Overall Size (mm)	2850×530×1450	3200×650×1450	3800×720×1750
Weight (Kg)	800	1500	2300
